ECLER WiLD-TX Draadloze zender voor maximaal 32 speakers

per stuk Ecler WiLD Draadloos systeem

ECLER WiLD-TX Draadloze zender voor maximaal 32 speakers
ECLER WiLD-TX Draadloze zender voor maximaal 32 speakers
ECLER WiLD-TX Draadloze zender voor maximaal 32 speakers
ECLER WiLD-TX Draadloze zender voor maximaal 32 speakers
398.00 *Prijzen zijn inclusief btw incl. 21% btw
Artikelcode10-12240
8435071344807
0 ster(ren) met 0 review(s) Schrijf een review
De WiLD-TX is een zender die communiceert met meerdere WiLD-ontvangers (zoals de WiLD-14 en WiLD-SB18) en zo een WiLD draadloos audionetwerk vormt. Dit systeem is ontwikkeld voor onder andere retailomgevingen, musea en presentatieruimtes, waar een eenvoudige en discrete audiodistributie gewenst is.

De WiLD-TX beschikt over ongebalanceerde RCA-ingangen (2x) en Bluetooth®, met toonregeling. Het apparaat stuurt het audiosignaal draadloos naar alle gekoppelde ontvangers en beheert tevens de systeemconfiguratie, zoals inputselectie, equalizing en uitgangen. Ontworpen voor betrouwbare, langeafstandscommunicatie en een onopvallende installatie.
Neem contact met ons op voor de levertijd
ECLER WiLD-TX Draadloze zender voor maximaal 32 speakers

Specificaties:
  • USB-C 5VDC Power Supply.
  • 2 audio inputs available:
    • Analogue stereo unbalanced. 2 x RCA connectors.
    • Bluetooth®, class 1 (up to 25 meters range, maximum).
  • 1x WiLD wireless audio signal transmitted (a mono conversion of the selected signal).
  • Maximum number of receivers under control per transmitter device = 32 units.

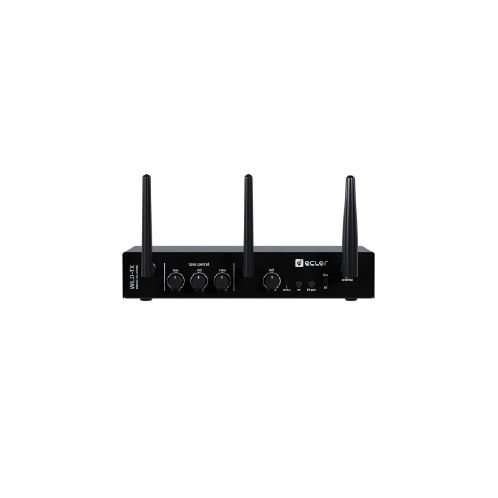

  • Front panel 3 band EQ controls and general (Master) volume control.
  • Recommended maximum range from a WiLD-TX transmitter to any WiLD paired receiver: 150 metres, with direct line of sight.

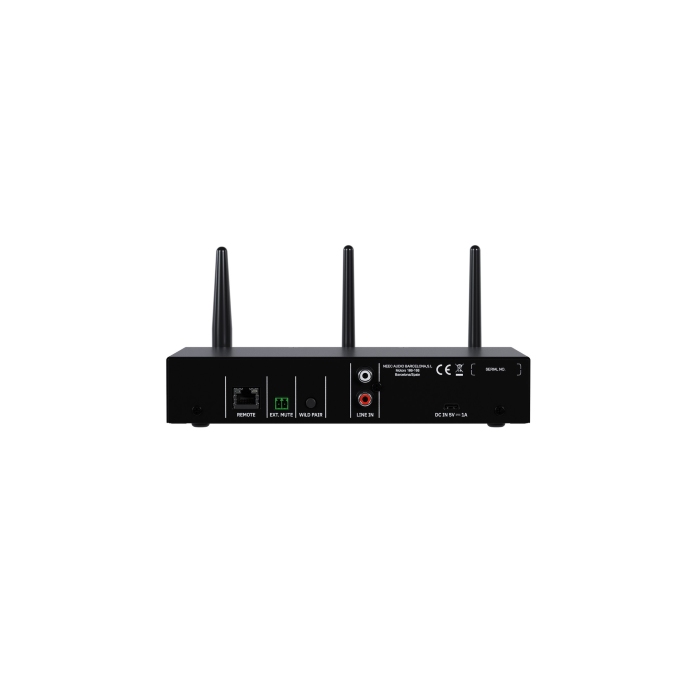

  • Rear panel WiLD pair button that allows pairing the receivers to the transmitter quickly and easily.
  • External universal Power Supply (100-240VAC 50-60Hz).
  • MUTE port, to allow the system’s audio silencing when an external dry contact is closed.
  • REMOTE port, to allow a simple general volume control for the end user with a WPaVOL or compatible wall panel.
  • WiS (RF WIRELESS DIGITAL AUDIO)
    • Frequency band: 1880 - 1930MHz,EU DECT, US DECT
    • Coverage range: Up to 150m from a TX to any paired RX, direct line of sight
    • Audio channels: 1 stereo audio ch received from the WiLD-TX network
    • Audio transmission: 16 bit uncompressed, 48kHz SR
    • Digital Audio Sample size: 16bit
    • Digital Audio Sampling rate: 48kHz
    • Digital Audio Frequency Response: 10Hz – 15kHz (-1dB)
    • Digital Audio converters: ADC Resolution: 24 bits
    • Dynamic range: ADC: 96 dB
    • Latency: From TX Analog Audio IN to RX Speaker < 26ms
  • ANALOGUE AUDIO INPUTS
    • Number of inputs: 1
    • Connection type: 2 xRCA unbalanced
    • Input sensitivity: -10dBV to 0dBV
    • Input impedance: >20kΩ
    • Max input level: +6.021dBV
    • THD + Noise: <1% (1kHz)
  • BLUETOOTH AUDIO INPUT
    • Class: Compliant 5.3, Class 2&3
    • Range: 25m (ideal conditions)
    • Profiles: A2DP1.3.2/AVRCP1.6.2
    • Supported codecs: SBC
  • ELECTRICAL
    • Power supply: External, universal Power Supply
    • AC mains requirement: 100-240 VAC @ 50-60Hz, using supplied DC adapter
    • AC mains connector: 5VDC IN mains USB-C
    • Power consumption: 1A at 5V
  • MONITORING AND CONTROL
    • Paring control: back panel button
    • Source selection: front panel switch
    • Volume control: front panel knob
    • Tone control: front panel knob
    • MUTE control: GPI
    • LED Indicators: Status
    • Auto standby time: 1200 seg
    • Auto standby threshold: 20 dB
  • PHYSICAL
    • Installation options: 1 Rack U, Wall or under a surface (table, shelf, cupboard, etc.)
    • Enclosure material: Metal
    • Mounting system: Surface & Rack ears
    • Operating temperature
      • Min: -10°C ; 14°F
      • Max: 40°C ; 104°F
    • Operating humidity: <85% HR
    • Storage temperature
      • Min: -10°C ; 14°F
      • Max: 50°C ; 122°F
    • Storage humidity: <90% HR
    • Included accessories: 1x External universal Power Supply, 2x DECT antennas, 1x BT Antenna, 1 x Half Rack Front Adapter, 2x Mounting ears, 1x Wall-mount. bracket, 1x Euroblock connector (mute).
    • Optional accessories: WPaVOL for volume control
    • Finished colour: Black (RAL 9005)
    • Dimensions
      • 217 x 44 x 117 mm / 8.54 x 1.73 x 4.61 in. (WxHxD)
      • 217 x 111 x117 mm / 8.54 x 4.37 x 4.61 in. (WxHxD) (including antennas)
    • Weight: 0.9 kg / 1.98 lb
